Advanced Ultrasonic Flowmeter

Product Features

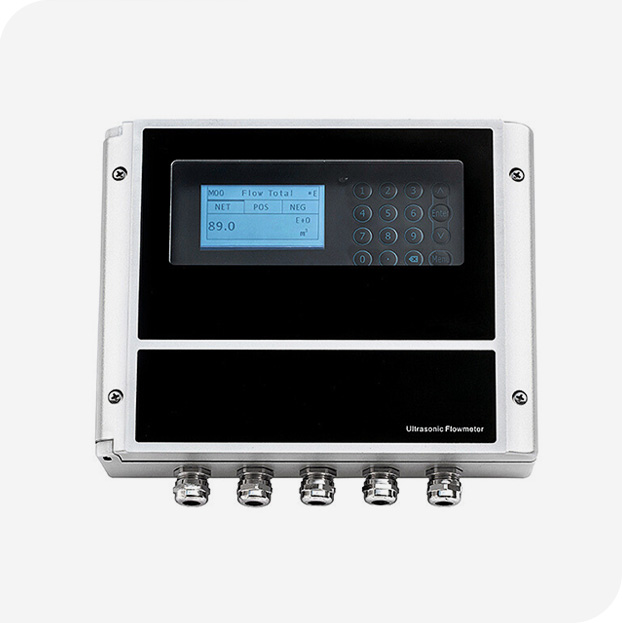

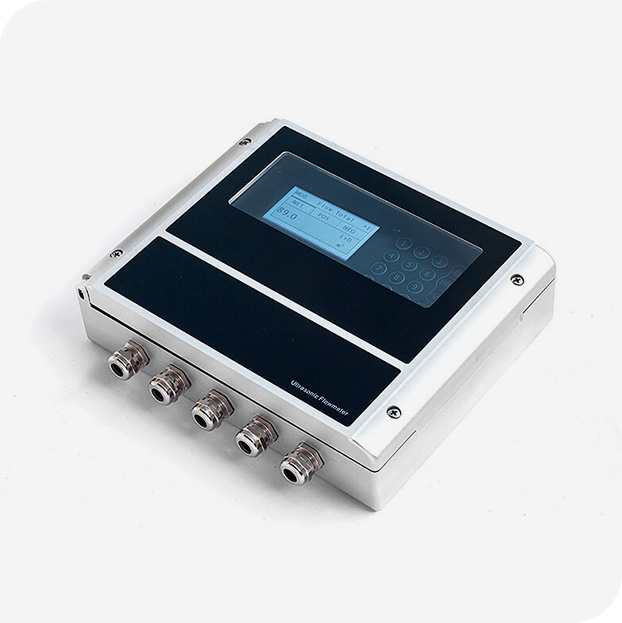

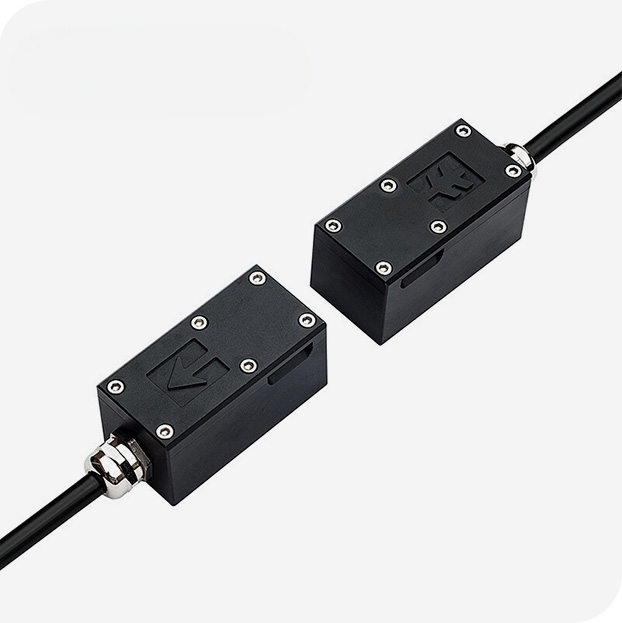

The OUF-PRO series ultrasonic flowmeter is a wall-mount, clamp- on type ultrasonic flow meter which uses the transit time technology to achieve accurate measurement. Clamp on type ultrasonic flow meter is easy to install and no need to cut off the pipe that saves you lots of troubles and cost. At the same time this ultrasonic flow meter has our unique statistic model and calculate software to ensure the high accuracy and sensitive velocity response.

This ultrasonic flow meter widely application in oil industry, water treatment, pure water, chemical and more.

The flow meter could add the RTD model and temperature sensor become an energy meter to monitoring the energy use, help to save the energy. Conveniently, friendly installation and operation. It only takes a few minutes, from the start of installation to reading from the flow meter.

Comparing With other traditional flow meter or ultrasonic flow meter, it has distinctive features such as high precision, high reliability, high capability and low cost.

The Flow meter features other advantages:

With ARM chip, low power consumption, high reliability, anti-jamming and outstanding benefits.

User-friendly menu designed. Parameters of pipe range, pipe material, pipe wall thickness, output signals, can be conveniently entered via the windows. British and Metric measurement units are available.

Daily, monthly and yearly totalized flow: Totalized flow for the last 64 days and months as well as for the last 6 years may be viewed. With the SD Card, 512 files can be stored; the time interval can be within 1 second.

Parallel operation of positive, negative and net flow totalizer with scale factor and 7-digit display. Internally configured batch controller makes batch control convenient.

The flow meter ensures the higher resolution and wider measuring range by the 0.04ns high resolution, high linearity and high stability time measuring circuit and 32 bits digits processing program.
