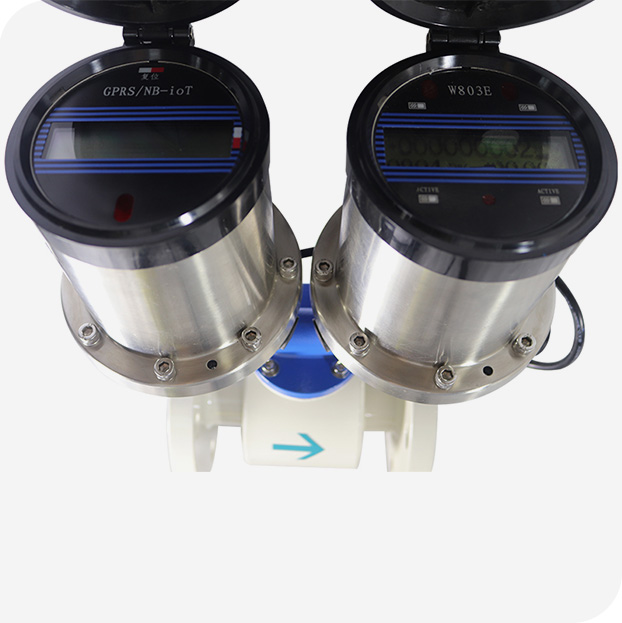

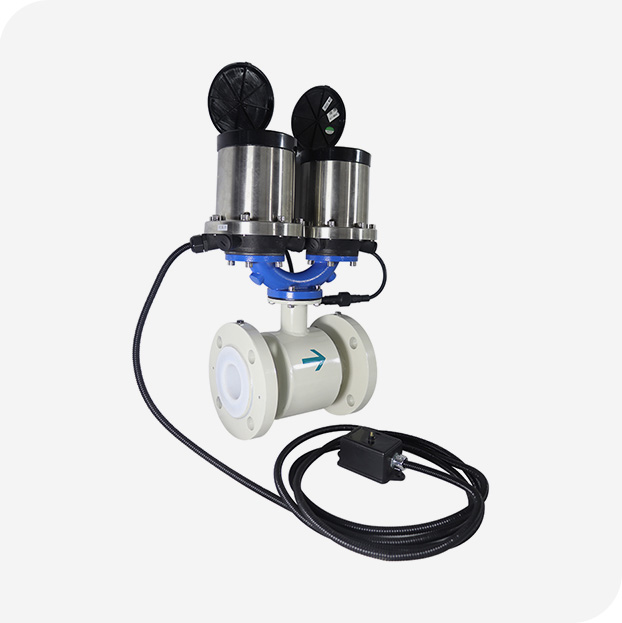

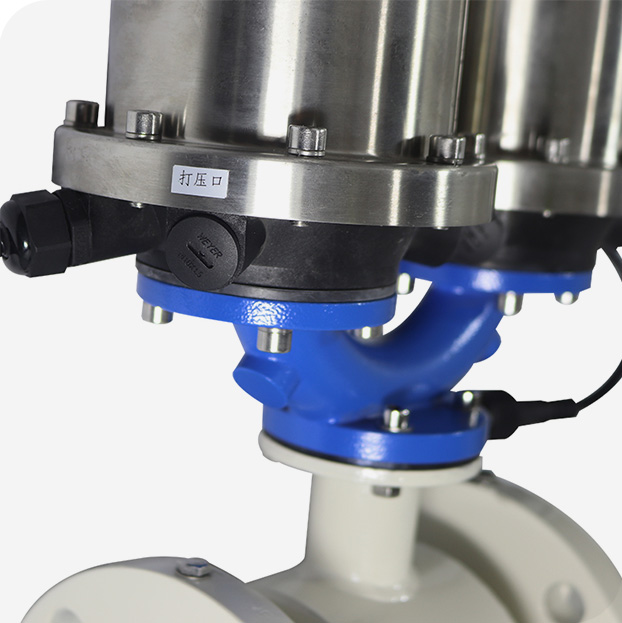

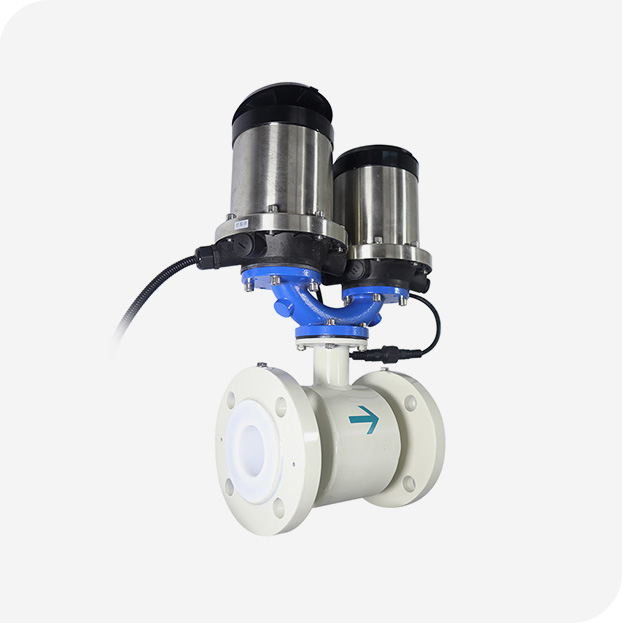

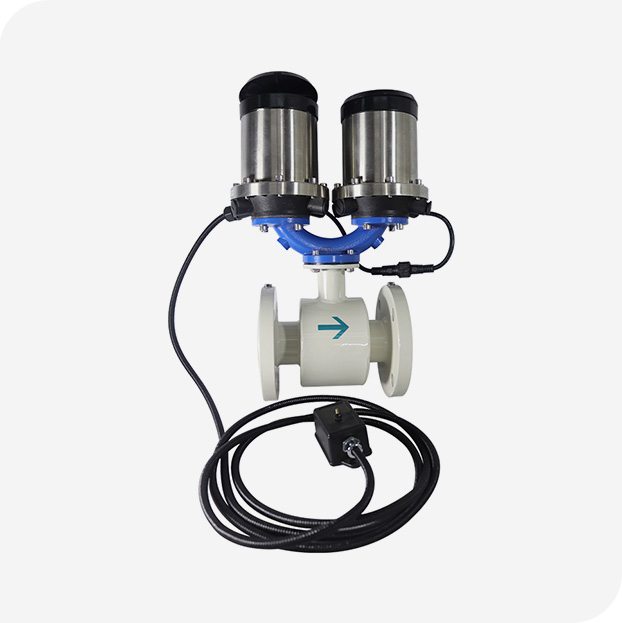

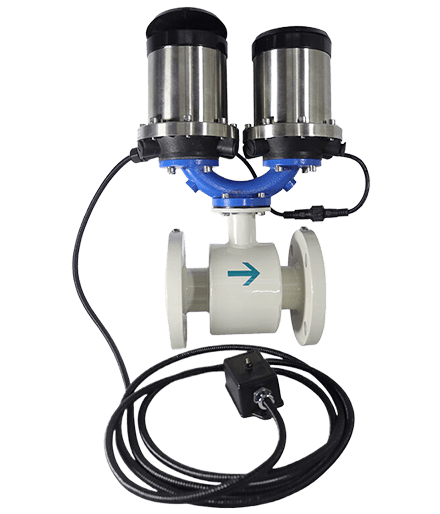

Battery Powered Electromagnetic Flowmeter

Product Features

The OMF-B Series electromagnetic flowmeter converter adopts Lithium battery pack as power supply, the standard configured Lithium battery allows to work continuously for 5-10 years.

The OMF-B type electromagnetic flowmeters can directly communicate with the management computer through 4G or NG mobile phone communication network

The OMF Series electromagnetic flow meter is a kind of flow meter made by adopting Faraday law of electromagnetic induction. This product is made by adopting the latest technology of modern electromagnetic flow meter with following features:

The measurement is not affected by the change of liquid density, viscosity, temperature, pressure and conductivity.

There is no component which may impede flowing in the measuring tube, no pressure loss, straight pipe section shall be relatively low.

The inside nominal diameter DN3- DN3000. Several selections are available for the sensor lining and electrode material.

The converter adopts new excitation method, and features low power consumption, stable zero point and high precision.

The converter can be formed in integrated or separated type with the sensor.

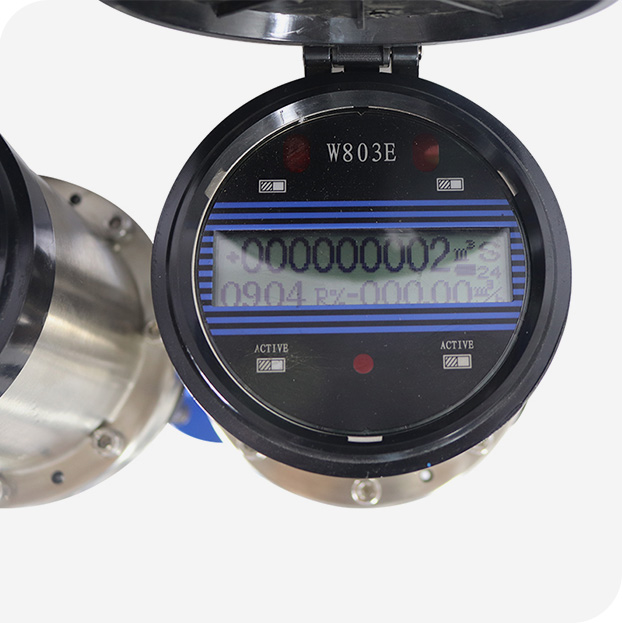

The converter adopts 16-digit high performance microprocessor, 3-line 128×64 LCD lattice English character display, and features convenient parameters setting, reliable programing.

The flow meter is the bidirectional measurement system and is installed with three integrators to record the total volume: forward total volume, reversed total volume and total difference; it can display forward flow and reverse flow volume, additionally, it can output: current, pulse, digital communication.

The converter adopts surface mounting technology (SMT) with the functions of self-inspection and self-diagnosis.

The rubber and polyurethane lining sensor adopt intrinsic immersion structure.

The explosion-proof instrument can be used for corresponding explosion-proof site.
