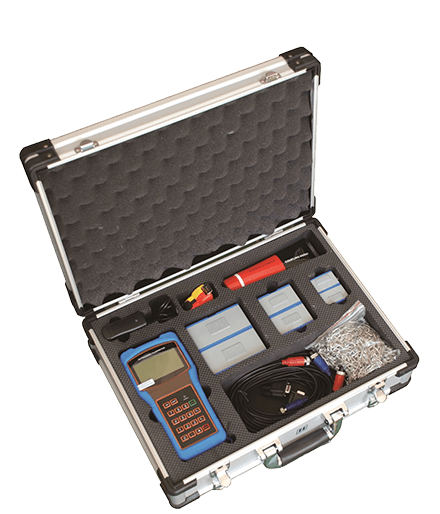

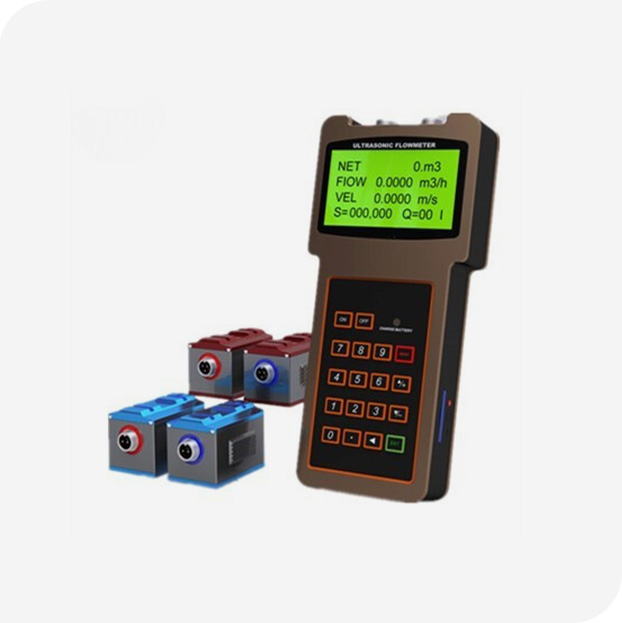

Handheld Ultrasonic Flowmeter

The OUF-H series hand-held ultrasonic flow meters use ultrasonic signals to measure flow rate by sending sound waves through a pipe. The time it takes for the signal to travel determines the flow velocity and volume. Powered by rechargeable batteries, its advantages include portability, easy installation, non-invasive measurement, and suitability for a wide range of pipe sizes and applications.

Send Email Whatsapp: +86 187 4988 8219

Product Features

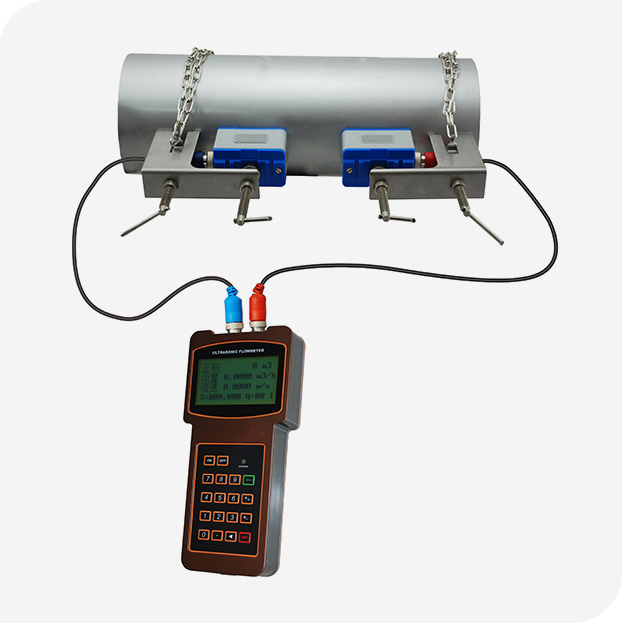

The OUF-H series Hand-held ultrasonic flow meters enable non-contact and temporary measurement of liquid flow. The flow is measured by mounting the sensor on the outer wall of the pipe. It has the characteristics of small size, convenient carrying and accurate measurement.

Widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy, and other industries. It can be used for production monitoring, flow verification, temporary inspection, flow inspection, water meter balance debugging, heat network balance debugging, energy saving monitoring, and is a necessary tool for timely flow detection.

It has the following features:: No need to cut pipes for installation and it does not cause pressure loss.; Wide temperature range, the OUF-H series can measure from -30℃-160℃;; Multi language user interface: The flowmeter has LCD Display and Menu with four languages: Chinese, English, Italian and French; Built-in 24K data logger, store over 2000 lines measuring data; Large LCD display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.; Long battery life, built-in rechargeable NI-MH battery, provide over 12 hours of continuous operation; Wide pipe range, the OUF-H series can measure between DN15-DN6000 pipes with the following selections of sensors.

Flow Transducer	Picture	Model	Measuring range	Temperature
Clamp on		TS-2 (small)	DN25-100	-30 ~ 90℃
		TM-1 (medium)	DN50-700
		TL-1 (large)	DN300-6000
High temp. Clamp on		TS-2-HT (small)	DN25-100	-30 ~ 160℃
		TM-1-HT (medium)	DN50-700
		TL-1-HT (large)	DN300-6000
Mounting bracket Clamp on		HS(small)	DN15-DN100	-30 ~ 90℃
		HM(medium)	DN50-DN700
		EB-1(large)	＞DN300
High temp Mounting bracket Clamp on		HS-HT(small)	DN15-DN100	-30 ~ 160℃
		HM-HT(medium)	DN50-300
		EB-1-HT(large)	＞DN300

products Application

The OUF-H Series Handheld flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Examples are:

Sewage with small particle content.
Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.).
Chemicals (alcohol, acids, etc.).
Beverage
Ultra-pure liquids.
Solvents and other liquids

Technical Parameters

Name	Specifications
Linearity	0.5%
Repeatability	0.2%
Accuracy	±1% of reading at rates>0.2 m/s
Response Time	0-999 seconds, user-configurable
Velocity	±12 m/s
Pipe Size	15mm-6000mm
Totalizer	7-digit totals for net, positive and negative flow respectively
Liquid Types	Virtually all liquids
Security	Setup values Modification Lockout. Access code needs unlocking
Display	4x8 Chinese characters or 4x16 English letters
Communication	RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements
Transducer Cord	Standard 5m x 2, optional 10m x 2
Power Supply	3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data Logger	Built-in data logger can store over 2000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS
Case Size	210x90x30mm
Main unit Weight	500g with batteries
