Article 4 of 10:Selecting Transducers for OUF-W Ultrasonic Flowmeters

2025-05-08

Understanding Transducer Types and Their Applications


The OUF-W Series offers three transducer types to suit diverse industrial needs. Choosing the right transducer is critical for accuracy, durability, and ease of installation.

Below, we break down their pros, cons, and ideal use cases:

Type

Pros

Cons

Best For


Clamp-On

Non-invasive, no pipe modification

Lower accuracy in noisy environments

Temporary setups, retrofitting, DN20–6000 pipes

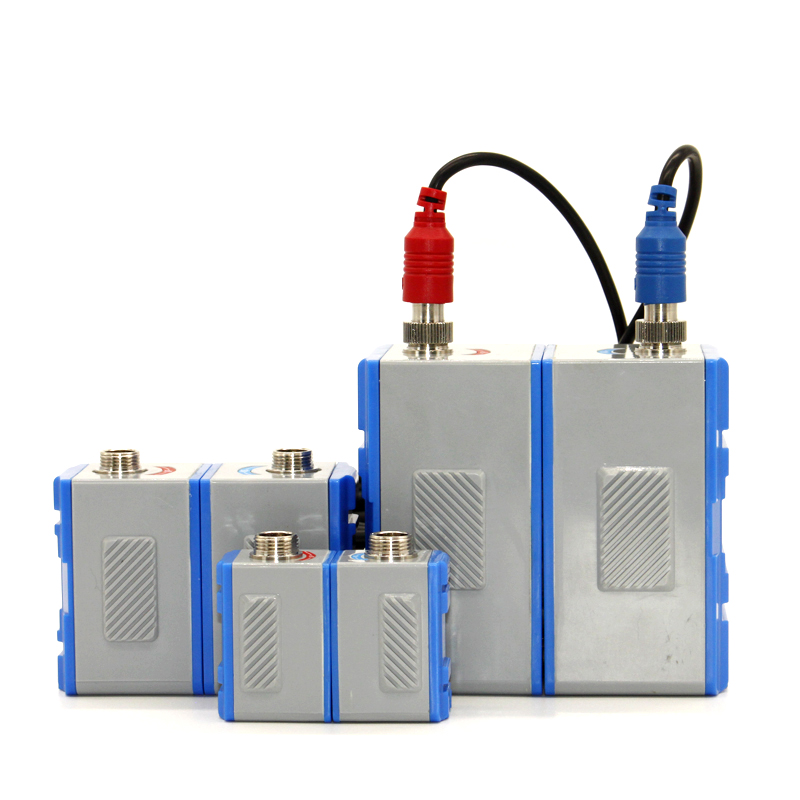

Sensor for handheld ultrasonic flowmeter(0-90°C)

Insertion

High accuracy, works with scaled pipes

Requires drilling, pressure limitations

Permanent installations, DN50–6000 pipes

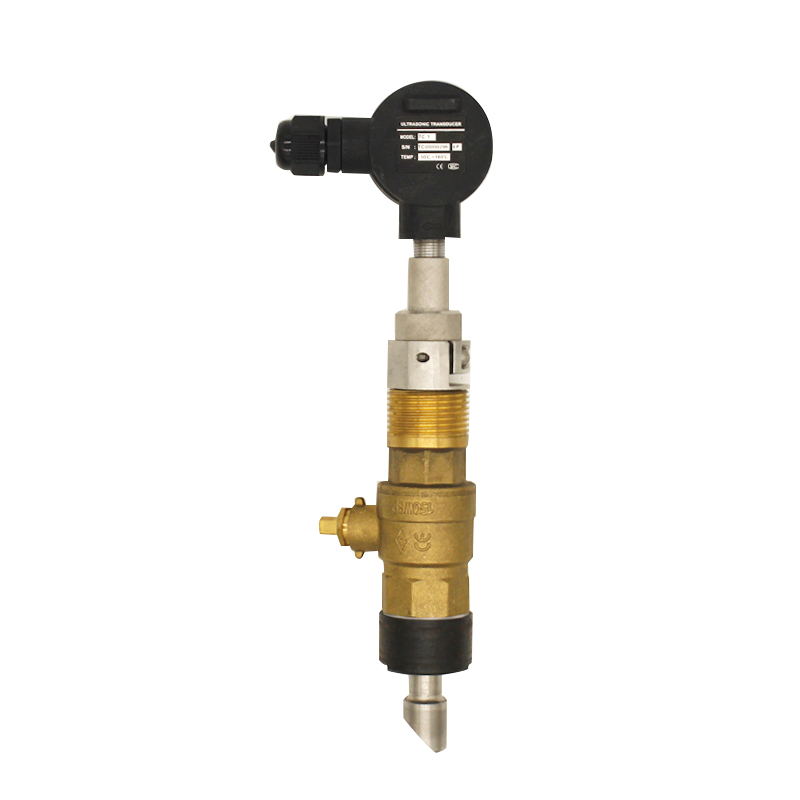

Insertion type sensor(ultrsonic flowmeter)

Inline

Maximum precision, high-pressure tolerance

Requires cutting/welding pipe

New installations, DN15–1000 pipes

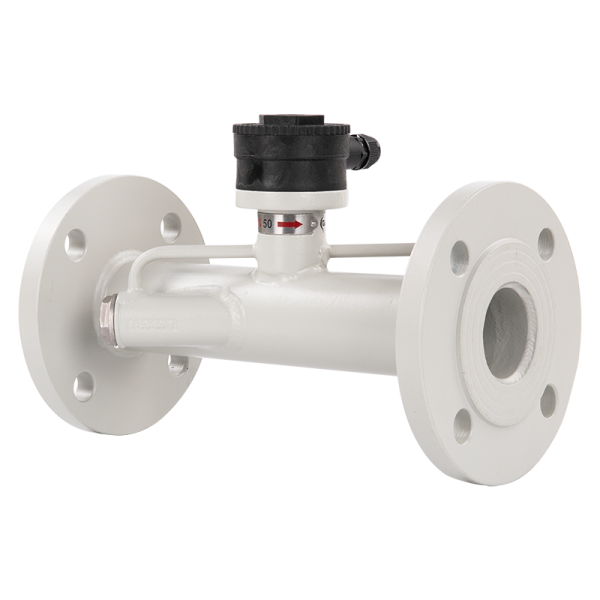

Inline sensors



Step 1: Match Transducer to Pipe Size & Fluid Properties

Clamp-On Transducers

• Models:

o TS-2: DN20–100 (small pipes, -30°C to 90°C).
o TM-1: DN50–700 (medium pipes).
o TL-1: DN300–6000 (large pipes).

• High-Temp Variants: TS-2-HT/TM-1-HT/TL-1-HT (-30°C to 160°C).

Insertion Transducers

• Models:

o TC-1: Standard (DN50–6000, -30°C to 160°C).
o TC-2: Extended range for thick-walled pipes.
o TP-1: Parallel insertion for DN200+ pipes.

• Pressure Limit: 1.6MPa (customizable for higher pressures).

Inline Transducers

• Models: Standard flanged units (DN15–1000).
• Pressure Limit: Up to 4.0MPa (customizable).



Step 2: Temperature Transducer Selection
For heat measurement, pair flow transducers with PT100 temperature sensors:

Type

Model

Cutoff Water?

Pipe Size

Clamp-On

CT-1

No

≥DN50

Insertion

TCT-1

Yes

≥DN50

Insertion (Pressure)

PCT-1

No

≥DN50

Small Pipe Insertion

SCT-1

Yes

<DN50



Step 3: Environmental and Operational Considerations

1. Pipe Material:
o Clamp-on transducers work best on steel, PVC, or copper. Avoid uneven surfaces (e.g., concrete).

2. Fluid Type:
o Use high-temperature transducers (HT models) for steam or hot oils.

3. EMI Sources:
o Keep transducers >3m from VFDs or high-voltage cables. Use shielded cables and grounding.

4. Flow Profile:
o Install 10D downstream from pumps/valves for stable flow (D = pipe diameter).

Common Mistake:
Using clamp-on transducers on heavily scaled pipes reduces signal strength (Q < 60). Opt for insertion models instead.



Step 4: Validation and Calibration
Post-installation, verify performance using:

• M90: Signal strength (>60) and Q value (>60).
• M91: Transmission time ratio (97–103%).
• M92: Compare fluid sound velocity to reference values.

Unsure which transducer fits your application? Please chat with our engineers for a free consultation!


Next in the Series
In Article 5: Installing Clamp-On Transducers for OUF-W Flowmeters, we’ll cover step-by-step V/Z-method installation, surface preparation, and signal optimization.
