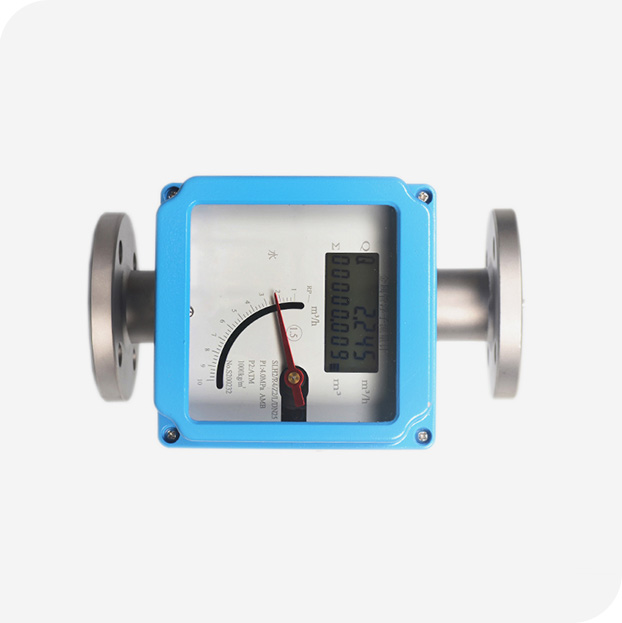

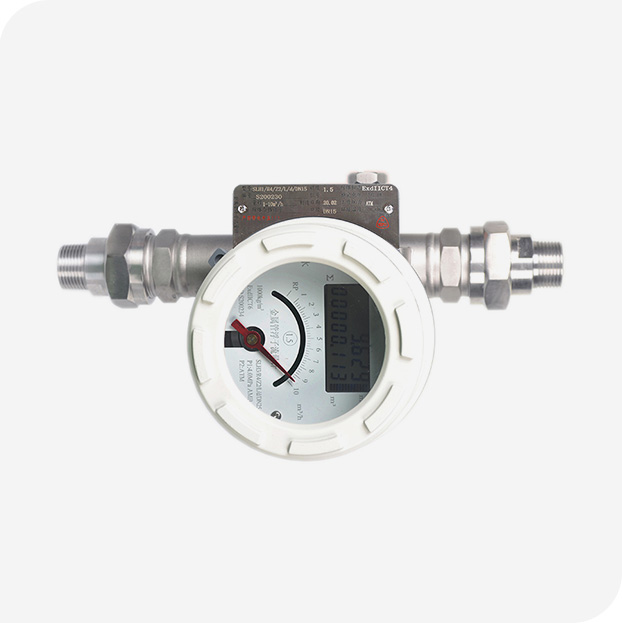

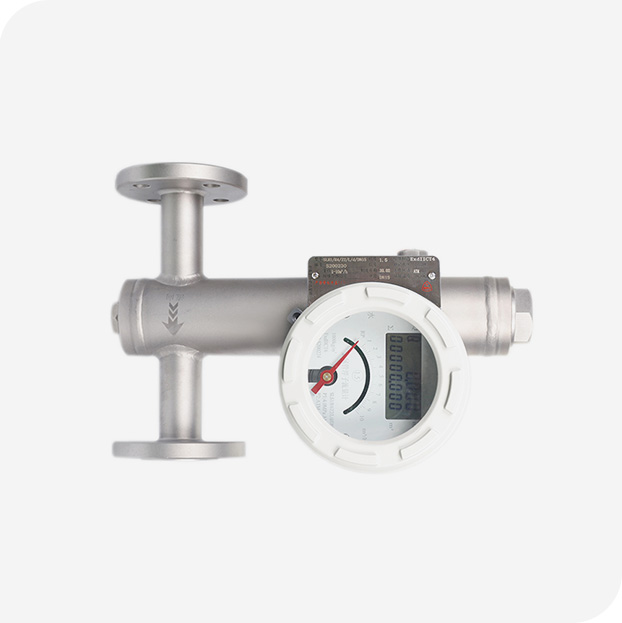

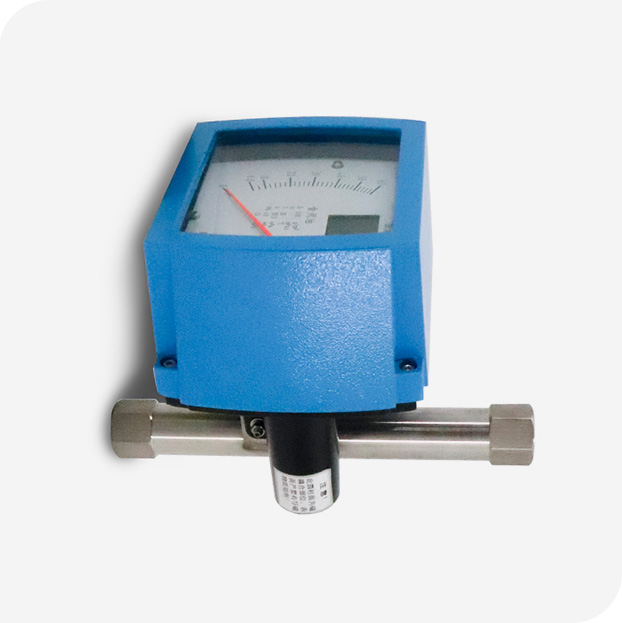

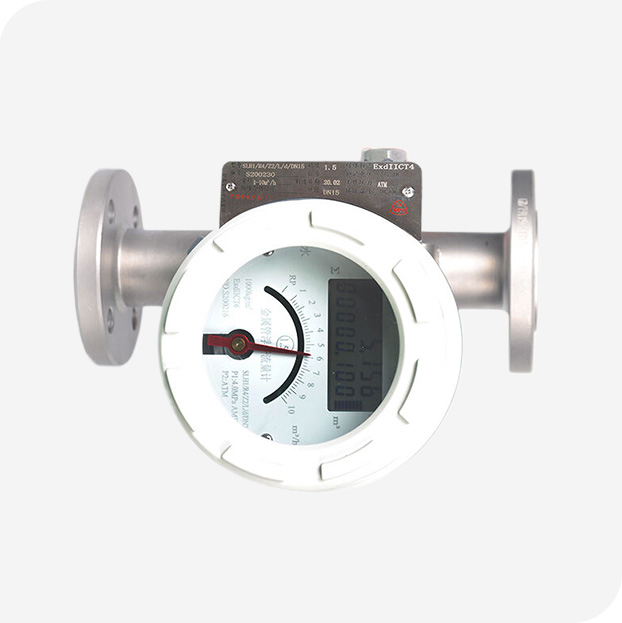

Metal Tube Rotameter

The OVAF series metal tube rotameter measures flow by floating a float within a vertical metal tube. As flow increases, the float rises, and in connection the pointer indicating the flow rate. Advantages include rugged construction, high durability, and suitability for a wide range of gases and liquids, even under high-pressure conditions. The series Metal Tube Rotameter can be pure mechanical flowmeter or pair with electronics to achieve signal output.

Send Email Whatsapp: +86 187 4988 8219

Product Features

The OVAF series Variable Area Flowmeter is commonly used in location that required on-site analog flow indication. The meter accurately measures small volumes / wide ranges of liquids, gases and steam.

The OVAF series variable-area flow meter with metallic tube has the characteristics of simplicity, reliability wide application field, high precision and easy installation.

It is widely applicable in petrol, chemical, power supply, pharmacy, food, water treatment industry etc.

5-digit flowrate & 8-digit totalizer

Solid, concise and reliable structure

Modular and intelligent indicator

Local indication without auxiliary power 4-20 mA & scale pulse output

Low pressure loss in gas and steam application Damper for Gas / Steam application

Consistent overall length 250mm

Heating jacket design

Intrinsically safe & explosion proof for hazardous area

products Application

The OVAF series Variable Area Flowmeter is applicable for the measurement and control and the flow of various fluids in gas or liquid state. Different types of rotameters can be selected for different working conditions such as high temperature, corrosive medium, different flow directions, hazardous environment etc. The series rotameter is easy to install and operate.

Some of the typical applications for the OVAF Series Variable Area Flowmeter are:

Oil and Gas Industries
Chemical Plant
Food and Beverage
Metallurgy
Petrochemical
Textile Industry
Water Treatment

Technical Parameters

Name	Specifications
Measure Range	Water (20℃) (2.5-10000) L/h
Range Ratio	10:1
Accuracy Grade	±1.5%，±2.5%
Fluid Working Pressure	DN15-DN50:4.0Mpa DN80-DN150:1.6Mpa
Working Pressure of Coating	1.6Mpa
Fluid Working Temperature	-80℃-+200℃ (PTFE≤+85℃ (For Model PTFE ≤+85℃)
Connection Type	Flange connection, Threaded connection or Tri-clamp connection
Environment Temperature	-25℃-+55℃
Medium Viscidity	DN15≤5mPa.S; DN25-DN100≤250m Pa.S
Electrical Parameters and Singal Output	Output Signal :(4-20mA)
	Power Supply :(13-30) VDC
	Power Supply Consume: ≤250mW
Restrict Alarm	Power Supply:≤24(±10%)VDC
	Power Loss: ≤3W
	Working Temperature: -25℃-+60℃
Explosion-Proof Gr	EXIbIICT5
