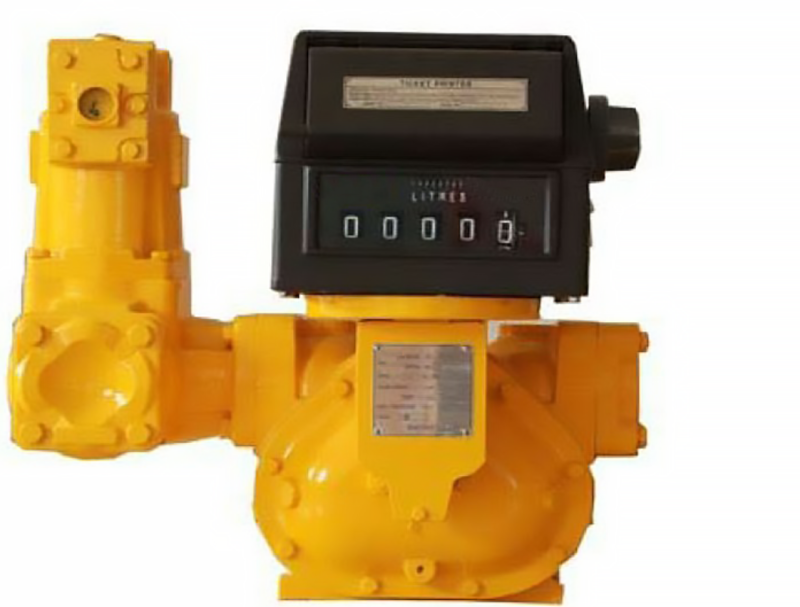

M-Series Positive Displacement Flowmeters: Precision Engineered for Demanding Liquid Applications

When accuracy, durability, and versatility matter in liquid metering, the M-Series Positive Displacement Flowmeter stands apart. Designed for seamless integration into transfer and process control systems, these meters deliver unmatched reliability for industries ranging from fuel distribution to chemical processing. Discover how the M-Series’ innovative engineering solves your toughest flow measurement challenges.

How It Works: Precision by Design

The M-Series employs a robust, no-compromise mechanical design:

Synchronized Rotor System: Two-blade displacement rotors and a central blocking rotor rotate within three cylindrical bores with zero metal-to-metal contact, ensuring minimal wear and long-term accuracy.

Continuous Capillary Seal: The blocking rotor creates a leak-proof barrier between unmetered upstream and metered downstream product, eliminating slippage even with low-viscosity fluids.

Timing Gear Mechanism: With the blocking rotor gear rotating at half the RPM of the displacement rotors, synchronization is maintained for consistent, repeatable measurements (0.05% repeatability).

Key Features & Benefits

Built for Tough Environments:

Max Pressure: 10 Bar | Max Temperature: 120°C

Corrosion-resistant housing and bearings for harsh chemical or fuel applications.

High Accuracy Across Flow Rates:

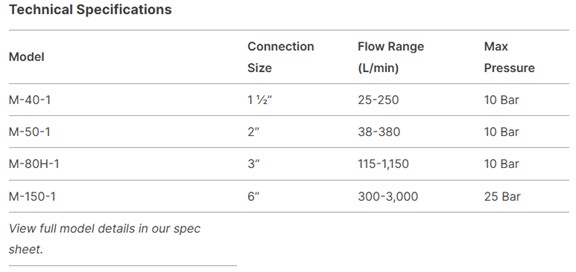

Models like the M-150-1 handle up to 3,000 L/min at 25 Bar, while the M-40-1 starts at 25 L/min (see full specs below).

Easy Integration & Customization:

Process Connection Options: ANSI, NPT, BSPF or other standards as requested

Units: Liter, US Gallon, IMP Gallon

Strainer Mesh: 80-mesh for diesel, 40-mesh for gasoline (prevents clogging).

Low Maintenance: No exposed electrical components and a self-lubricating design reduce downtime.

Ideal Applications

Fuel & Petrochemicals: Verify loading/unloading in bulk plants, refineries, or tanker trucks.

Transport & Delivery: On-board metering for fuel/LPG tankers.

Aviation & Heavy Machinery: High-flow dispensing systems for aircraft and industrial vehicles.

Chemical Processing: Reliable transfer of aggressive or viscous liquids.

Why Choose the M-Series?

Proven Reliability: Trusted in mission-critical operations worldwide.

Global Compliance: Meets industry standards for safety and performance.

Tailored Solutions: Custom configurations for unique fluid properties or mounting needs.

Ready to Transform Your Liquid Metering Process?

Take the next step toward unmatched precision and reliability. Download the full spec sheet to explore detailed technical specifications and find the perfect M-Series model for your application. For personalized support, request a free quote tailored to your flow rate, pressure, and industry requirements. Partner with Kaifeng Oasis Instrument Co., Ltd. today and experience the accuracy, durability, and ease-of-use that define the M-Series.
