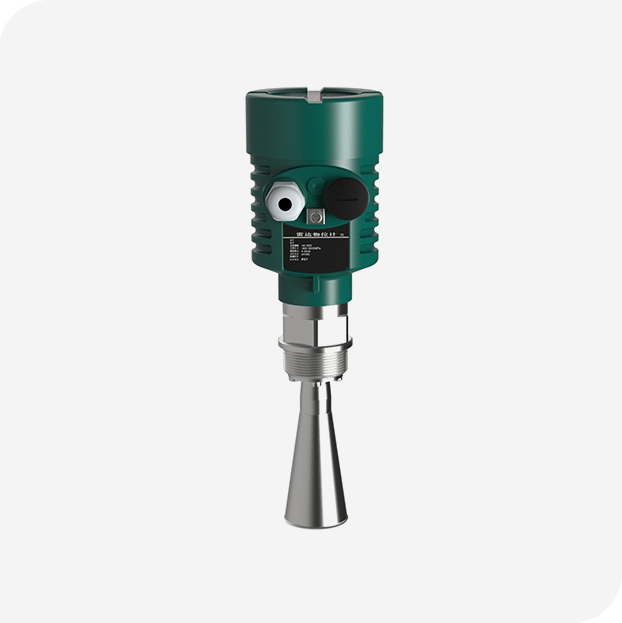

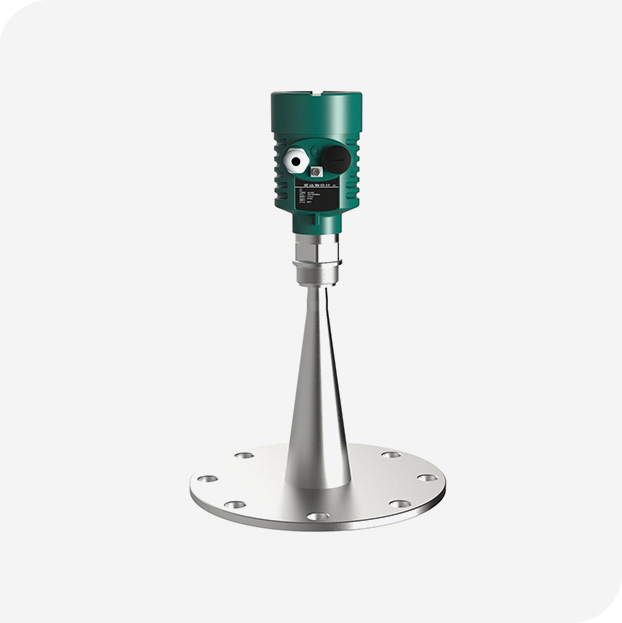

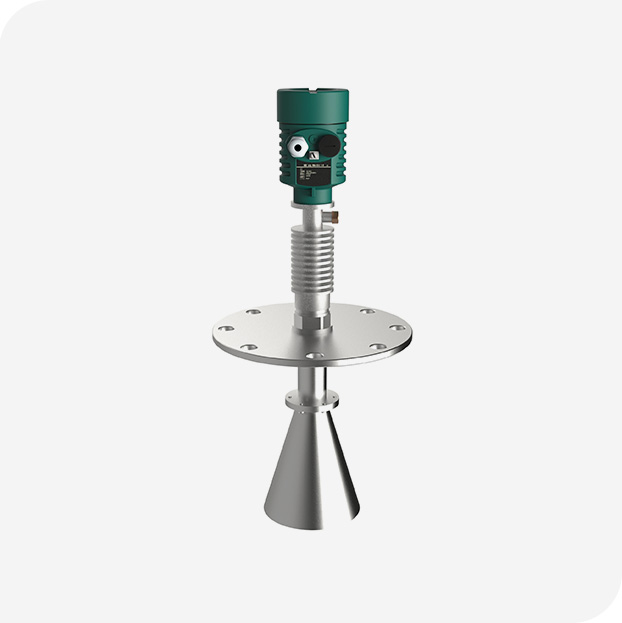

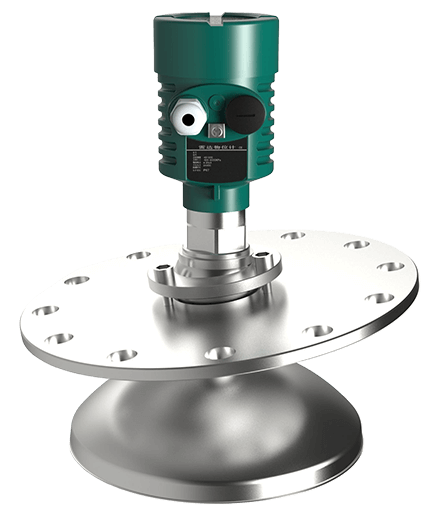

The ORL series Radar level transmitter uses microwave radar waves to measure the level of liquids or solids. It sends signals that reflect off the surface, with the time taken for the signal to return used to calculate the level. Advantages include high accuracy, non-contact measurement, and reliability in harsh environments.
The ORL series Radar level transmitter transmits and receives ultrashort microwave impulse with very short emission energy through antenna. The radar wave moves at the velocity of light. The moving time can be converted into substance position signal through electrical components. A special time-extension method can secure stable and precise measurement within very short time.
The ORL series radar level gauge has made use of advanced technologies including continuous frequency modulation over the most effective microwave band (9.5GHz – 10.5GHz) and software to safeguard collection and processing of effective signals. Coupled with an integrated design, it has significantly improved accuracy of the system.
As a result, the product has achieved superb performance with an affordable price.
Integrated structure

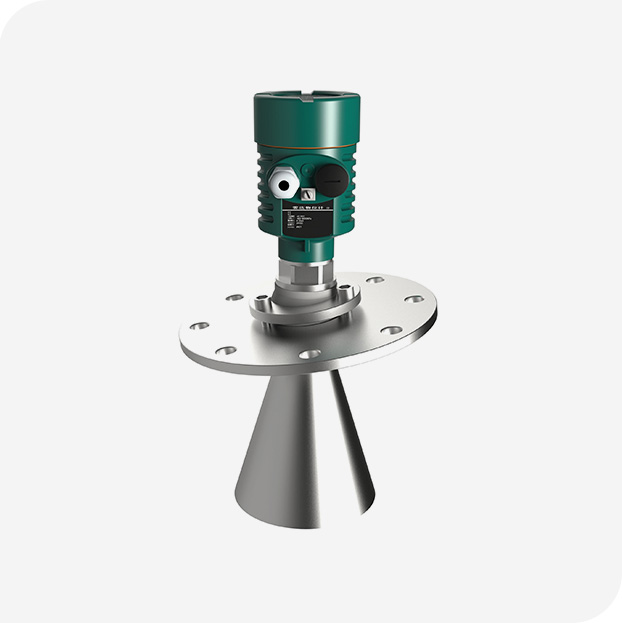

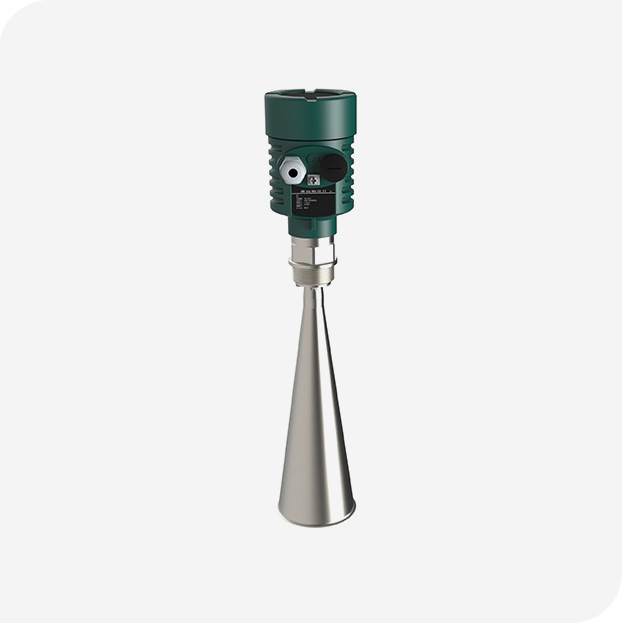

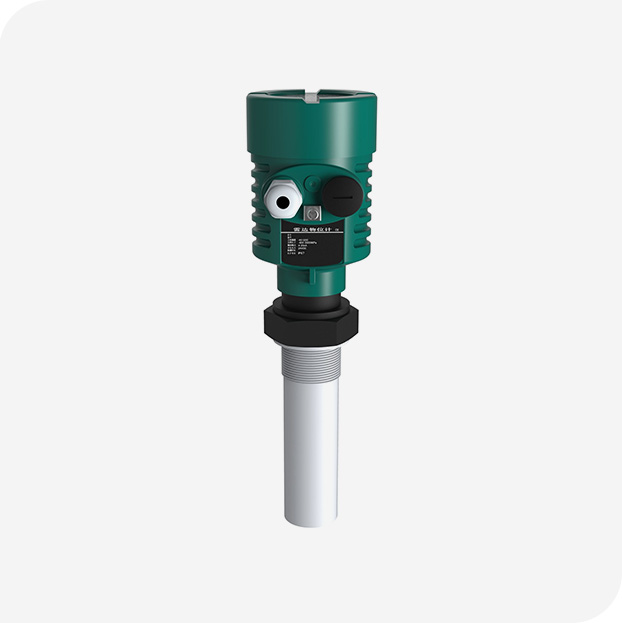

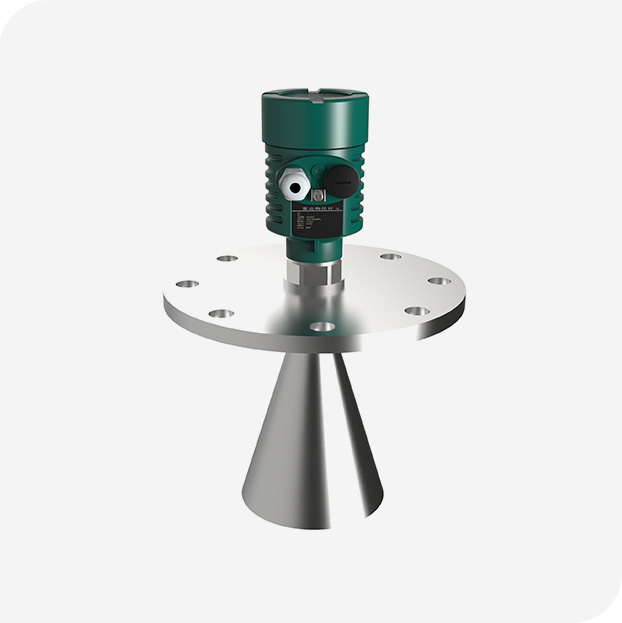

Pole or horn antenna made of non-conductance PTFE/polypropylene with optional pole length and horn
Explosion accreditation
Easy to set and program through hand-held terminal or operation window
Advanced application software provides resistance to interference of whips or other obstacles
The ORL series radar level transmitter manufactured by our company is developed based on many years’ practice and applications. The technologies such as tank illustrations, mixer reflection inhibition, area gravity difference and jobsite noise inhibition make it possible to use the radar level transmitter in very poor working conditions, such as the fields of asphalt tank, reaction vessel, liquefied petroleum gas tanks, brewing industry and pharmaceutical industry.
LNG tank

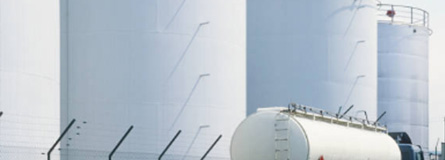

Chemical Storage Tank

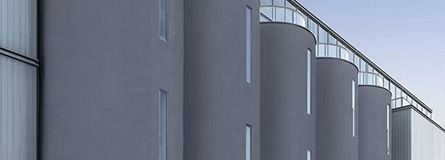

Coal Powder Silo
River/Lake level management

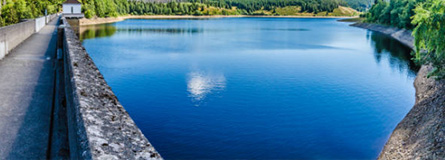

Water reservoir

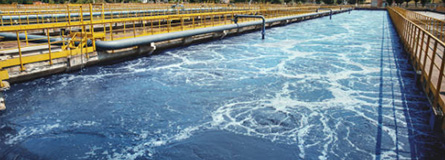

Wastewater treatment
|
Name |
Specifications |
|||||||
|
Working Frequency |
6.8GHz |
|||||||
|
Wave Beam Angle |
24°ORL-51; ORL-52 18° ORL-53 with 6″flange 14° ORL-53 with 8″flange 12° ORL-53 with 10″flange |
|||||||
|
Measuring Range |
0…30m |
|||||||
|
Repeatability |
±2mm |
|||||||
|
Resolution |
1mm |
|||||||
|
Sampling |
Wave echo sampling 55 times /s |
|||||||
|
Response Speed |
>0.2s (depends on applications) |
|||||||
|
Signal Output |
4…20mA |
|||||||
|
Accuracy |
±0.1% |
|||||||
|
Antenna Material |
ORL-51、ORL-52 is PP/PTFE ORL-53 is 316L stainless steel |
|||||||
|
Communication Interface |
HART communication protocol |
|||||||
|
Process connection |
ORL-51 (PP; PTFE antenna): G1-1/2 316L stainless steel. ORL-52 (Rod type antenna): flanging flange 2″，3″，4″，6″. ORL-53 (Horn type antenna): flange 2″，3″，4″，6″，8″，10″. |
|||||||
|
Power Source |
Power: 24V DC (+/-10%), Ripple voltage: 1Vpp Power Consumption: Max22.5mA |
|||||||
|
Environmental Conditions |
Temperature：－40℃…＋80℃ Container pressure (Gauge Pressure）－1…40bar |
|||||||
|
Enclosure Protection Class |
IP68 |
|||||||
|
Electrical Connection |
Power supply and signal output share one two-core Cable entry: 2 M20×1.5 (cable diameter 5…9mm) |
|||||||
