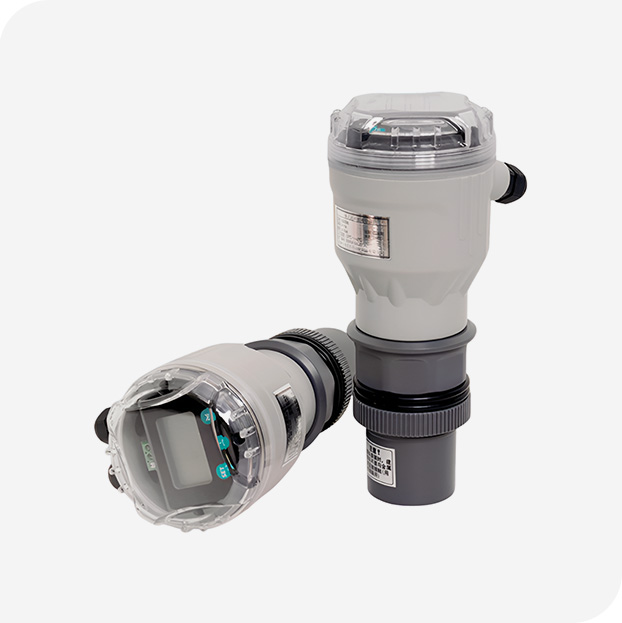

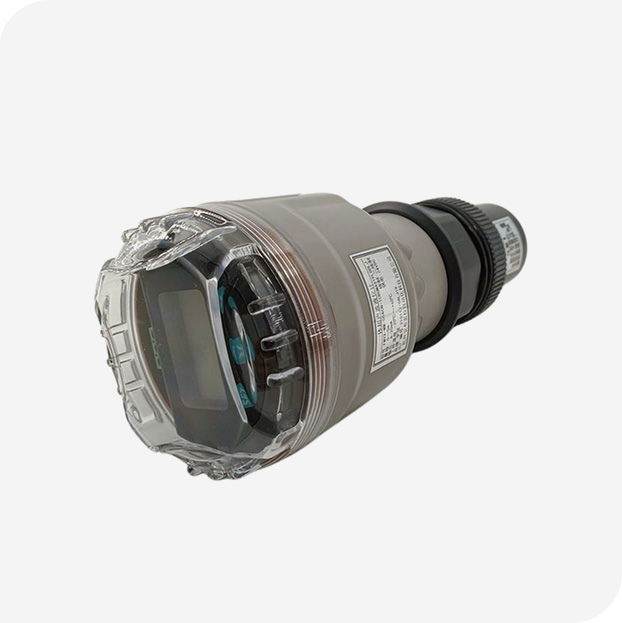

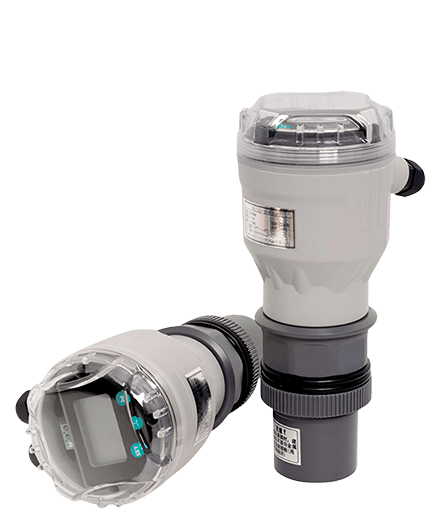

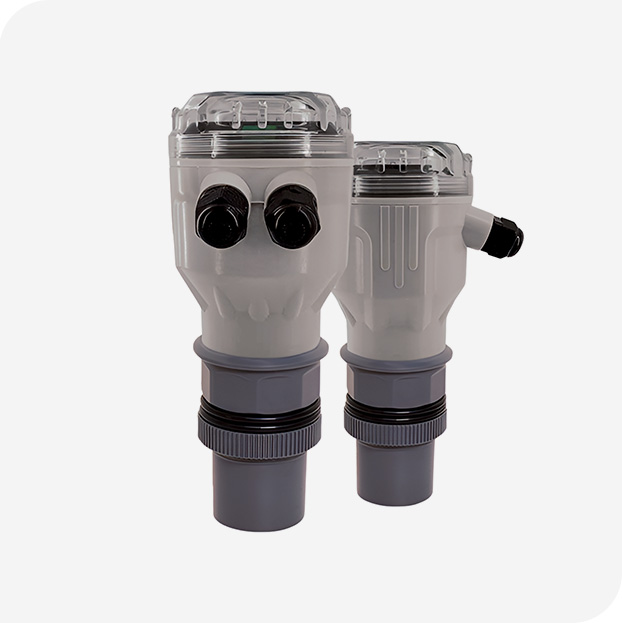

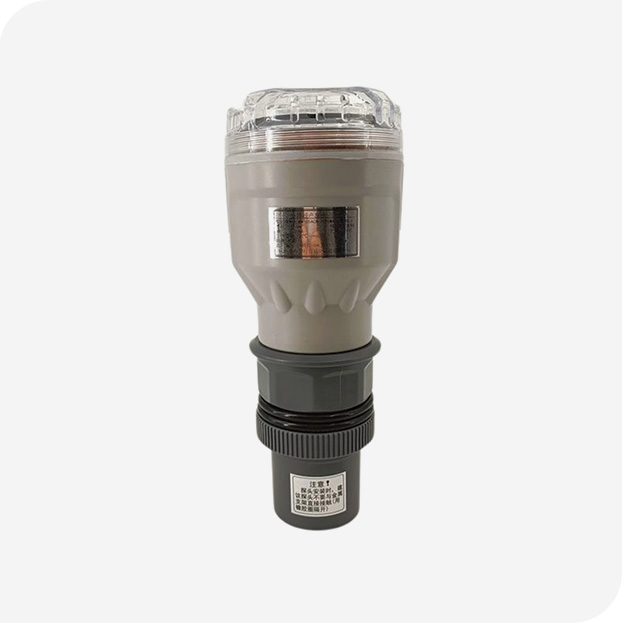

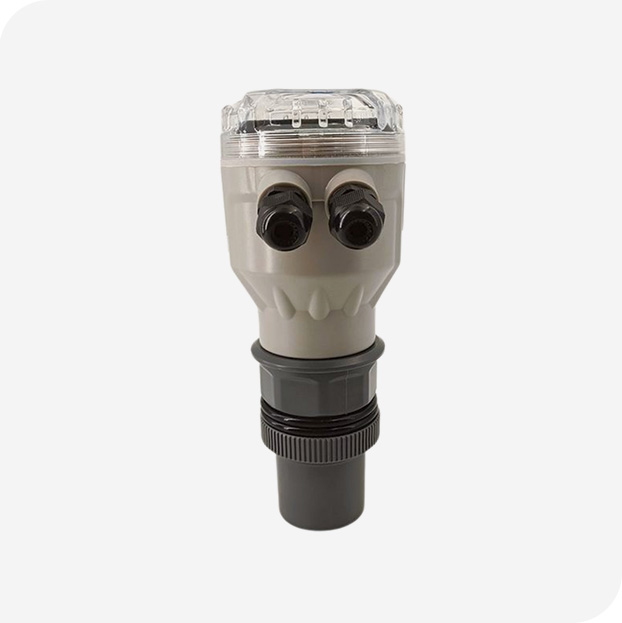

The OUL series ultrasonic level transmitter uses high-frequency sound waves to measure liquid or solid levels. The transmitter emits pulses, which reflect off the surface, and the time taken for the reflection to return is calculated to determine the level. It offers high accuracy, non-contact measurement, and reliable performance.
The OUL series ultrasonic level transmitter is a standard remote ultrasonic level transmitter for continuous non-contact level measurement in liquids and solids. It consists of probe and host, both of which are plastic leak-proof structure. The series can be widely applied to the metallurgical, chemical, electricity and oil industries.
Integrated design installed conveniently.
Protected in the excessive voltage and current
Protected in the thunder and lightning.
The big window of LCD is easy to debug and read.
Over-voltage over-current protection, lightning protection.
Advanced terminal design, to ensure that wiring never loose.
Intellectual signal treatment technology, guarantee that the instrument meets various kinds of harsh operating occasion.
All plastic probe, acid and alkali resistant, adapt to bad environment;
The OUL series ultrasonic level transmitter is widely used in industries such as portable water, heat supply, water management, metallurgy, chemical processing, and energy.
The level transmitter can be installed for process management, temporary checking, it is essential to the monitoring systems.
River/Lake level management
Water reservoir
Wastewater treatment

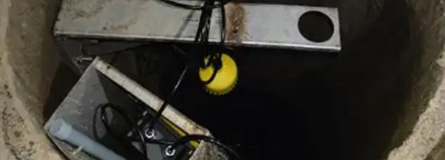

Water well level management
|
Function |
Integral Design |
Split Design |
|
Standard Range |
5m, 10m, 15m, 20m |
|
|
Other Ranges |
1m, 30m, 40m, 50m, 60m |
|
|
Level Accuracy |
Actual field measurement is 0.5%–1.0% |
|
|
Resolution |
3mm or 0.1% (whichever is greater) |
|
|
Display |
LCD display |
|
|
Analog Output |
4-wire system 4–20mA / 510Ω load 4-wire system 4–20mA / 510Ω load |
2-wire system 4–20mA / 250Ω load No 2-wire system |
|
Relay Output |
Default without relay, optional 2 sets AC 250V/5A or DC 30V/5A Programmable Status |
Default without relay, optional 2 or 4 sets AC 250V/5A or DC 30V/5A Programmable status |
|
Power Supply |
DC 24V, AC 110VAC, AC 220VAC 3.6V, 7.2V, 12V battery power, or solar power |
|
|
Ambient Temperature |
Display instrument -20 to +60℃, probe -20 to +80℃ |
|
|
Ambient Pressure |
Standard atmospheric pressure |
|
|
Ambient Humidity |
≤90% RH, non-condensing |
|
|
Process Temperature |
-20～+80℃； |
|
|
Process Pressure |
Standard atmospheric pressure |
|
|
Communication |
Optional 485, 232 communication, MODBUS protocol |
|
|
Protection Level |
Display instrument IP66, probe IP68 |
Display instrument IP65, probe IP68 |
|
Probe Cable |
None |
Standard 10 meters, maximum 100 meters |
|
Probe Material |
Standard material is ABS; use anti-corrosive materials in corrosive environments. Corrosive-resistant probe materials include PVDF, PTFE. |
|
