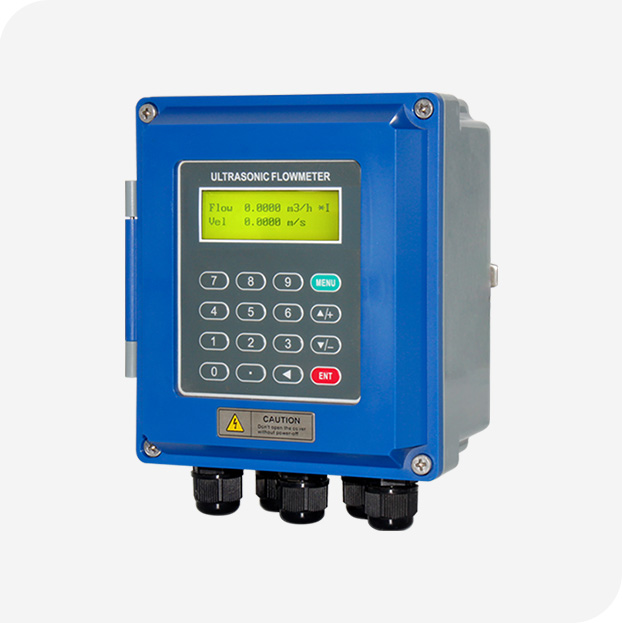

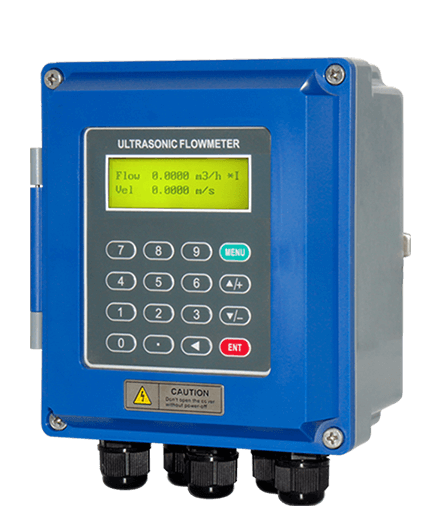

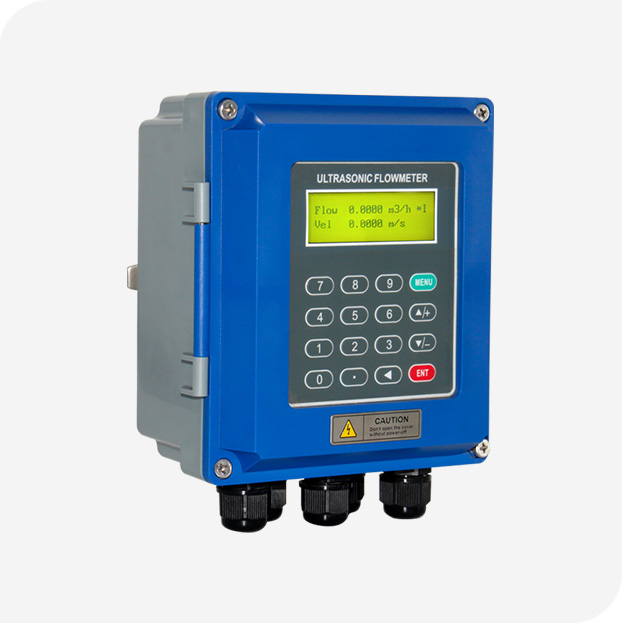

Wall Mount Ultrasonic Flowmeter

The OUF-W series wall-mount ultrasonic flowmeters use sound waves to measure fluid velocity. By sending ultrasonic pulses through the liquid, they calculate flow based on the time it takes for the pulses to travel (Transit-time type). Advantages include non-intrusive installation, high accuracy, minimal maintenance, and suitability for various pipe sizes and liquids.

Send Email Whatsapp: +86 187 4988 8219

Product Features

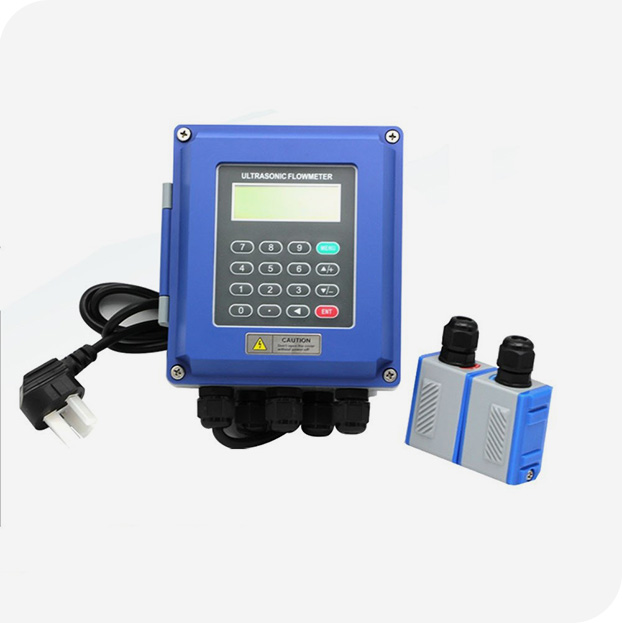

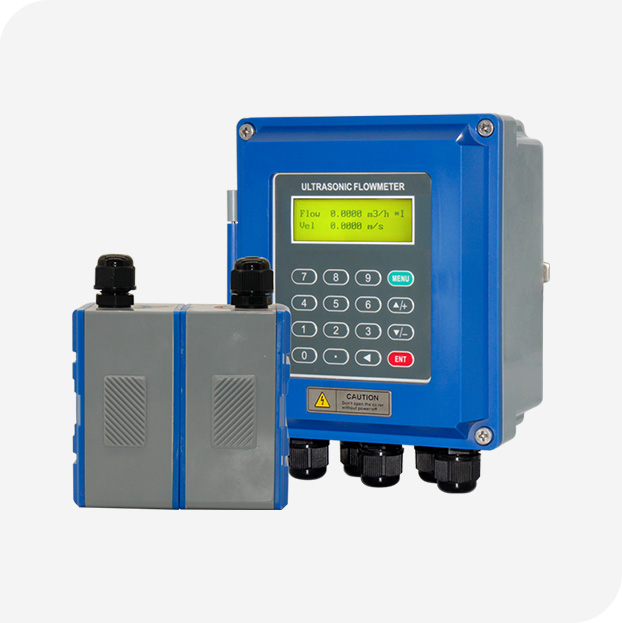

The OUF-W series Wall mount clamp on type ultrasonic flowmeter is composed of converter with clamp on type sensor.

Simply attach the clamp on type sensor to the surface of the pipe to complete the flow measurement of various liquids, compared with the traditional flow meter, it does not need to cut off the tube, the installation is convenient and fast, realizing the non-destructive installation.

It has the following features:: No need to cut pipes for installation and it does not cause pressure loss.; Wide pipe range, the OUF-W series can measure between DN15-DN6000 pipes.; Wide temperature range, the OUF-W series can measure from -30℃-160℃;; Multi language user interface: The flowmeter has LCD Display and Menu with four languages: Chinese, English, Italian and French; Built-in 32K memory: Store up to 2000 lines of measurement data, use of matching measurement data analysis of statistical software, process measurement data, as tabulation, statistics, data analysis, data screening, print statements, production flow curve.; The flowmeter can become a BTU meter when installed with one pair of temperature sensors.; Various selections of sensos, below are the tables for different models of flow sensors and temperature sensors.

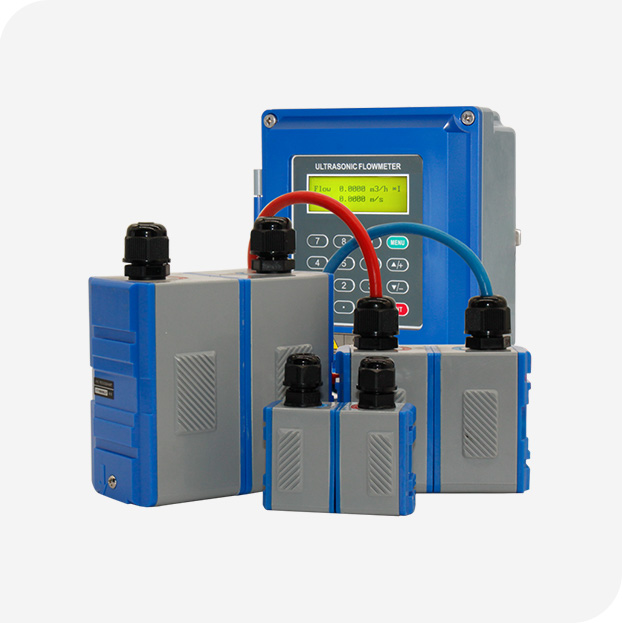

Flow Transducer	Picture	Model	Measuring range	Temperature
Clamp on		TS-2 (small)	DN25-100	-30 ~ 90℃
		TM-1 (medium)	DN50-700
		TL-1 (large)	DN300-6000
High temp. Clamp on		TS-2-HT (small)	DN25-100	-30 ~ 160℃
		TM-1-HT (medium)	DN50-700
		TL-1-HT (large)	DN300-6000
Mounting bracket Clamp on		HS(small)	DN15-DN100	-30 ~ 90℃
		HM(medium)	DN50-DN700
		EB-1(large)	＞DN300
High temp Mounting bracket Clamp on		HS-HT(small)	DN15-DN100	-30 ~ 160℃
		HM-HT(medium)	DN50-300
		EB-1-HT(large)	＞DN300

Temperature Transducer	Picture	Model	Measuring range	Temperature	Cutoff water
Clamp on		CT-1	≥ DN50	-40 ~ 160℃	No need
Insertion		TCT-1	≥ DN50	-40 ~ 160℃	Need
Insertion under pressure		PCT-1	≥ DN50	-40 ~ 160℃	No need
Insertion small sizes		SCT-1	< DN50	-40 ~ 160℃	Need

products Application

The OUF-W Series wall-mount flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Examples are:

Sewage with small particle content.
Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.).
Chemicals (alcohol, acids, etc.).
Beverage
Ultra-pure liquids.
Solvents and other liquids

Technical Parameters

Items		Specifications
Main unit	Accuracy	Better than ±1%
	Repeatability	Better than 0.2%
	Principle	Transit-time measuring principle
	Measurement Period	500ms
	Display	LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.
	Output	Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼ 1kW. Accuracy 0.1%.
		OCT output: Frequency signal (1~9999HZ)
		Relay output: over 20 source signal (no signal, reverse flow etc.)
		RS485 serial port
	Input	Three analogue input
	Input	Three-wire PT100 resistor input (optional)
	Other functions	Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days
Pipe	Material	Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed
	Size	15-6000mm
	Straight pipe section	In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D fro the access of the pump. (D stands for pipe diameter)
Liquid	Types	Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid
	Temperature	Standard: -30˚C - 90˚C ，High-temperature：-30˚C - 160˚C
	Turbidity	Less than 10000ppm, with a little bubble
	Flow Direction	Bi-directional measuring, net flow/heat measuring
Environment	Temperature	Main Unit: -30˚C - 80˚C
	Temperature	Transducer: -40˚C-90˚C, Temperature transducer: Optional
	Humidity	Main Unit: 85% RH
	Humidity	Transducer: water-immersible, water depth less than 3m
Cable	Twisted Pair Line, standard length of 5m, can be extended to 500m (no recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m
Power Supply	AC220V or DC24V, 1.5W
Protocols	MODBUS, M-BUS, Fuji extended protocol and other factory protocol
